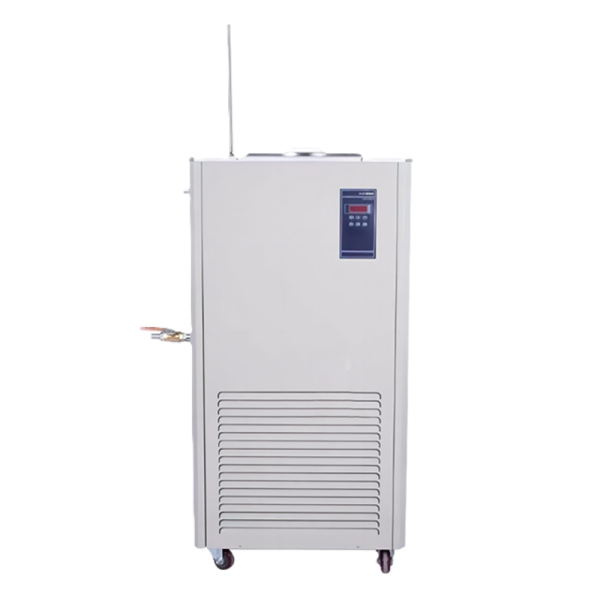

Scitek CIR-L-TEMP-20/-40 Low Temperature Cooling Liquid Circulator
The CIR-L-TEMP-20 & CIR-L-TEMP-40Low Temperature Cooling Liquid Circulators deliver precise and stable temperature control, ranging from -20°C to room temperature (CIR-L-TEMP-20) or -40°C to room temperature (CIR-L-TEMP-40). Designed for demanding laboratory applications.
The CIR-L-Temp-20 & CIR-L-Temp-40 Low Temperature Cooling Liquid Circulators are reliable and efficient solutions for laboratories requiring accurate and stable temperature control. With a wide temperature range and precision of ±0.1°C, these circulators are ideal for various scientific, chemical, and biological applications.
Key Features
- Precise Temperature Control: Accuracy of ±0.1°C with a display resolution of 0.1°C.
- Wide Temperature Range:
- CIR-L-Temp-20: -20°C to Room Temperature.
- CIR-L-Temp-40: -40°C to Room Temperature.
- High Pump Performance:
- Flow: 20~40 liters per minute.
- Pump Lift: 4~6 meters.
- User-Friendly Interface: Easy-to-read temperature display for quick adjustments.
Applications
- Chemical Reactions: Ensure precise thermal control for consistent results.
- Biological Experiments: Maintain low, stable temperatures for sensitive samples.
- Calibration: Achieve accurate calibration of instruments in controlled conditions.
- Industrial Testing: Supports processes requiring specific low-temperature environments.
Why Choose the CIR-L-Temp-20 & CIR-L-Temp-40?
- Efficient cooling performance for demanding lab tasks.
- Compact and reliable design suitable for diverse laboratory setups.
- High pump flow and lift for versatile applications.
Technical Specifications
| Model | CIR-L-Temp-20 | CIR-L-Temp-40 |
|---|---|---|
| Temp. Display | LED display | |
| Tank Volume | 6.8L | 20L |
| Matching Reaction Kettle (Steam) | 1~5L | 20L |
| Tank Material | 201 Stainless Steel | |
| Tank Size | φ220×180mm | φ300×300mm |
| Temp. Control Accuracy | ±0.1 °C | |
| Display Temp. Resolution | 0.1°C | |
| Pump Lift | 4~6m | |
| Circulating Pump Flow | 20~40L/min | |
| Refrigerant | R22 | |
| Refrigerating Capacity | 2324~735W | 6972~2205W |
| Pressure | ≤0.4Mpa | |
| Ambient Relative Humidity | (60~80%)Ventilation | |
| Instrument Temp. Control Range | -20°C~RT | -40°C~RT |
| Optimum Ambient Temp. | 5~35°C | |
| Unload Min Temp. | -20°C | -42°C |
| Circulation Pump Power | 100W | |
| Circulating Pump | Fully-closed &No-leaked special pump | |
| Sensor | PT100 | |
| Coil Diameter | φ185mm | φ255mm |
| Opening Size | φ200mm | φ250mm |
| Power Supply | AC220±10%, 50/60Hz； AC110±10%, 60Hz | AC220V±10%, 50/60HZ |
| Sizes(W×D×H)(mm) | 490×430×(760+410) | 600×680×(980+500) |
| Shipping Size (W×D×H)(mm) | 600×435×890 | 720×600×1200 |
| N.W./G.W. (kg) | 50/70 | 105/135 |
